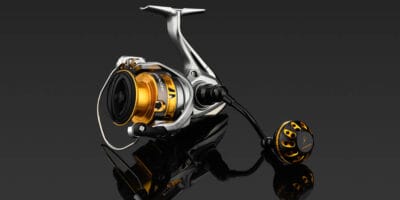

If you want to replace your fishing reel handle, our Gomexus reel handle replacement guide is all you need to get the job done.

Fishing enthusiasts always have a special connection with their fishing equipment, and the reel is one of the most crucial parts of that equipment. Shimano is a well-known brand in the fishing industry and is widely recognized for its high-quality reels. However, like any other machinery, Shimano reels are prone to wear and tear over time. Therefore, it's important to know how to replace a Shimano reel handle.

In this article, we will teach you how to replace your handle knob of Shimano reels and also provide a step-by-step tutorial for installing a Shimano reel handle.

Shimano Reel Introduction

Shimano produces a wide range of fishing reels for different types of fishing, including spinning, baitcasting, and offshore fishing reels. Shimano's reels are popular among both professional and recreational anglers for their durability, performance, and reliability.

Reel Handle Introduction

The reel handle is one of the most crucial parts of a fishing reel. It's the part that you hold onto while you're reeling in your catch. Over time, the handle knob of the reel can become worn out or damaged, and it needs to be replaced. In addition, anglers may want to customize their fishing gear or match the handle with the rod they are using.

Handle Knob Removal Tutorial for Shimano Reels

Before you can install a new handle knob, you need to remove the old one. Here's a step-by-step tutorial on how to remove the handle knob of a Shimano reel:

Step 1: Remove the Retainer Screw

The first step is to remove the retainer screw that holds the handle knob in place. To do this, use a screwdriver to turn the retainer screw counterclockwise until it comes loose. Be careful not to lose the screw as you remove it.

Step 2: Remove the Handle Nut

Next, remove the handle nut. The handle nut is the circular piece that sits underneath the handle knob. Use a wrench or pliers to turn the handle nut counterclockwise until it comes loose. Again, be careful not to lose the nut as you remove it.

Step 3: Remove the Handle Knob

Once you've removed the handle nut, remove the handle knob. Simply pull the handle knob away from the reel's body, and it should come off easily.

Step 4: Remove the Handle Arm

If you need to replace the handle arm as well, you'll need to remove it at this point. To do this, use a wrench or pliers to turn the handle arm counterclockwise until it comes loose. Then, pull the handle arm away from the reel's body.

Step 5: Clean the Reel Handle

Before you install the new handle knob, take some time to clean the reel handle. You can use a soft cloth and some warm soapy water to clean the handle and remove any dirt or debris.

Step 6: Inspect the Reel Handle

While you're cleaning the reel handle, take the time to inspect it for any signs of wear and tear. If you notice any damage, it's best to replace the handle arm as well.

Handle Knob Tutorial for Installing a Shimano Reel

Once you've removed the old handle knob, it's time to install the new one. Here's a step-by-step tutorial on how to install a new handle knob on a Shimano reel.

Step 1: Install the Handle Arm (if necessary)

If you need to replace the handle arm, start by inserting the new handle arm into the reel's body. Make sure that the handle arm is aligned properly with the reel's gear before you tighten it.

Step 2: Install the Handle Knob

Next, slide the new handle knob onto the reel's handle arm. Make sure that the handle knob is seated properly on the handle arm.

Step 3: Install the Handle Nut

After you've installed the handle knob, it's time to install the handle nut. Place the handle nut over the handle arm and thread it onto the reel's body. Use a wrench or pliers to tighten the handle nut clockwise until it's snug.

Step 4: Install the Retainer Screw

The final step is to install the retainer screw. Insert the retainer screw into the hole on the side of the handle knob and tighten it clockwise with a screwdriver until it's snug.

Step 5: Test the Handle

Once you've installed the new handle knob, give it a quick test to make sure it's working properly. Turn the handle to see if it spins smoothly and without any resistance.

Step 6: Lubricate the Reel Handle

Finally, it's important to lubricate the reel handle to ensure that it operates smoothly. Apply a small amount of reel oil or grease to the handle and turn it several times to distribute the lubricant evenly.

Conclusion

Replacing the handle knob of a Shimano reel is a simple process that can be done in just a few minutes with the right tools and a little know-how. This guide will enable you to easily remove and install a new handle knob on your Shimano reel.

In addition to Shimano, Daiwa is another popular brand in the fishing industry. If you own a Daiwa reel and need to replace the handle knob, here's a step-by-step tutorial on how to remove and install a new handle knob on a Daiwa reel.

Daiwa is a leading manufacturer of fishing equipment and is known for producing high-quality reels. The company produces a wide range of fishing reels for different types of fishing, including spinning reels, baitcasting reels, and offshore fishing reels.

Daiwa Reel Introduction

Daiwa's reels are popular among both professional and recreational anglers for their durability, performance, and reliability. Daiwa produces a wide range of reels, including the popular Daiwa BG spinning reel and the Daiwa Tatula baitcasting reel.

Reel Handle Introduction

The reel handle is one of the most important components of a Daiwa reel, just like Shimano reels. The reel's handle knob may eventually be made to wear out, in which case a replacement is required. Also, anglers might wish to change the handle on their reel to match their rod or to personalize their fishing equipment.

Handle Knob Removal Tutorial for Daiwa Reels

This is a step-by-step guide for taking off a Daiwa reel's handle knob:

Step 1: Remove the Retainer Screw

Turn the retention screw counterclockwise with a screwdriver until it is released. As you remove the screw, take care not to lose it.

Step 2: Remove the Handle Nut

Loosen the handle nut by turning it counterclockwise with a wrench or pair of pliers. Once more, take care not to lose the nut while removing it.

Step 3: Remove the Handle Knob

After removing the handle nut, you can slide the handle knob off the handle arm.

Step 4: Remove the Handle Arm (if necessary)

If you must replace the handle arm, unscrew the screws holding it and remove it. Use a screwdriver to turn the screws counterclockwise until they come loose, and then lift the handle arm out of the reel body.

Step 5: Clean and Inspect the Reel Handle

Before installing a new handle knob, take a moment to clean and inspect the reel handle. Wipe it down with a clean cloth to remove any dirt, grime, or debris. Inspect the handle for any signs of damage or wear, and replace any damaged parts if necessary.

Step 6: Install the New Handle Knob

To install the new handle knob, simply slide it onto the handle arm and align it with the reel body. Make sure that the handle knob is seated properly on the handle arm.

Conclusion

I hope it was easy to use our Gomexus reel handle replacement guide to replace the handle knob of a Daiwa reel. It is a relatively easy process that can be done in just a few minutes with the right tools and a little know-how. Whether you have a Shimano or Daiwa reel, replacing the handle knob is a straightforward process that can be done at home with the right tools and instructions. By following the step-by-step tutorial provided in this guide, you can easily remove and install a new handle knob on your Daiwa reel.

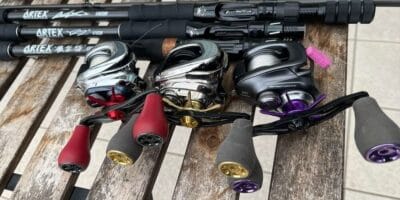

The star drag is most commonly used as it is easier to produce. If you’ve been fishing for a while, you know how frustrating it can be to lose a big fish to a broken line. This usually happens when the drag is not set properly.

Star Drag setup tutorial

Once you are aware of the mechanics of your reel, there are two ways in which you can adjust the tension using the star-shaped knob or through the power handle located on the reel’s front side.

• Adjusting the power handle- If you are using a power handle or star drag knob, then you need to turn it counter-clockwise for adjusting the tension. Make sure the adjustment is slight. Turning it too much might cause your reel to start jerking spastically.
• Consider the line size– The larger the line size, the more money you will have to spend on the reel. You need to then consider the backing and also check if you will require a separate aluminum spool for the backing

If you get the basics right, you can fish all day without having to worry about the reel breaking. Also, you will not have to worry about the line getting tangled while fishing.

What’s better star drag or lever drag?

While comparing lever drag vs star drag reels, it could be easier to conclude that lever drags are much better. This is because they are easier to adjust in a moment and you can also easily alter pre-set drag levels. With a single flip of the thumb, you can engage the reel and adjust the drag which is not the case with the star drag.

Although the lever drag may seem superior, it does have some downsides. Firstly, they are more expensive in comparison to star drags. Secondly, while it is possible to hit the lever and open or close the drag with a lever in lever drag, it is nearly impossible to move a star drag out of the proper position by mistake. The lever drag requires attention while a star drag is more of a set-it-and-forget-it drag.

Only an experienced angler would prefer a lever drag. This is because you need to be able to shift easily the weight by applying just the right pressure within seconds to have a better chance of catching a hot tuna. Both lever and star drag is effective. However, lever drags are the first choice of experienced anglers. However, beginners need to first practice with a star drag. Their features ensure that the newbies won’t make any mistakes that lower your success rate.

Although both star and lever drag appear similar to the untrained eye, there are plenty of differences between them.

Scale

The major difference between the gear styles is that the lever drags are based on a scale whereas the star drag consists of friction discs and ball bearings. This allows the line to flow freely through the reel which is essential if you intend to cover more water. This is why professionals go for star drags at times if they want to boost their chances of catching giant bass.

Impact Force

A lever drag is capable of absorbing impact force when the catch hits the lure. Although this is a great feature, it can result in a lot of pressure on the reel. This implies that the reel has to be more robust in terms of construction. The major problem with this kind of reel is that you will not have plenty of drag settings and you may also face issues in keeping the line in control.

Fish-Holding Power

The major difference between star drag and lever drag reels is the fish-holding power. A lever drag reel can hold a lot of weight. Hence, anglers use it for spinning baits or lures that have intense movements such as crankbaits or jigs. This is why it is best to use them on light and slow baits that sit on the bottom.
Star drags tend to create an imbalance with the fish. If the fishing line is tight and you are fighting the line, both reels will impact the line. With lever drag, you can pull out easily and avoid tearing up your leader.

Safety

Both lever and star drag reels are safe to use. however, you need to be aware of the right way to reel in and reel outline. The star drag is safe as it holds a lot more gear capacity and can hold more weight. However, you need to be careful of the star drag while reeling in the fish. Though the lever drag is easier to use, it can cause issues on your trip.

Gear Capacity and Weight

The star drag is capable of holding more gear. However, the lever drag is very safe to use. you just need to be careful while handling lever drag because of fish accidents associated with its use when you are not careful.

Gear Capacity

The lever drag has just one thing on its side and that involves adjusting the line. However, the star drag comes with some other features such as washers that prevent the gears from overloading.

How does star drag work?

If you are an angler, you will come across several kinds of reels. Each of these reels comes with its kind of drag system and functionality. Conventional reels consist of two kinds of drag systems. The star drag system is the most commonly used reel. It is one of the easiest reels to set and the best thing is it doesn’t require any complex adjustments. A lever drag on the other hand requires you to make continuous adjustments and fine-tune throughout the day.

The star drag reel is made of several materials of which carbon is the most common. The higher-end reels feature aluminum material. It is easy to use. as you turn the star forward, you compress the drag washer thereby increasing the drag pressure and making it harder to pull out the line. As you rotate the star backward, it becomes easier to pull off the line. You can make these adjustments depending on the pound test line you are using and what your techniques might be for the day.

Gomexus star drag

If you are looking for the best star drag to choose from, you can go for the Gomexus star drag.  The Gomexus star drag for Shimano and Daiwa is made of aero aluminum that allows your fingers to adjust more quickly and easily. Featuring a hexagonal design, it not just makes the reel beautiful but also cuts down the weight rendering your reel special and unique.

Summary

Star drag reels are easy to manage and are ideal for beginners with no experience in handling any fishing equipment. It makes it much easier for them to catch a game in comparison to lever drag reels. There are plenty of options available when it comes to purchasing fishing rods and accessories. make sure to understand the features of each to learn which one would be the best for your needs.

Though one can spend thousands on purchasing a fishing rod and reel, most casual fishers would be happier finding something that is functional and apt for the purpose.

If you have a thing for saltwater fishing, then you should go for a rod that has been specifically designed to meet your needs such as surviving the rough waters and yet being sensitive enough to detect subtle bites in deep water. The use of corrosion-resistant materials and sturdy blanks allow saltwater rods to detect the lightest bite and still have the power to beat an ocean predator.

Difference between saltwater and freshwater fishing rods

Freshwater fishing is a term that describes fishing done in freshwater or any water body that has less than 0.05 percent salinity levels such as ponds, rivers, and lakes. Saltwater fishing involves fishing in the sea or ocean. It is usually done while on a pier, from short or in open water.

Adventure seekers prefer saltwater fishing as it promises the best fishing experience and you can catch a wide variety of large fish in the saltwater. Here are the major differences in the gear of both freshwater and saltwater fishing rods.

Saltwater is corrosive. Hence, saltwater fishing equipment comes with a special casing. This is why you can use saltwater gear in freshwater but not the reverse. The major difference between saltwater and freshwater gear is the ability of saltwater gear to withstand the corrosive environment it is subjected to. Saltwater is a harsh liquid and has the ability to corrode metal structures. Usually, saltwater fishing rods are fabricated with less corrosive materials such as stainless steel and copper. These metals promise a better chance to withstand the harsh environment of saltwater fishing.

Rods

Saltwater rods are usually made from graphite, fiberglass, or a combination of the two. However, there is a significant difference in the fittings present with the rod and the length of the rod. Most advanced anglers prefer graphite rods over the others owing to their fighting power and are quite stiff to detect even the slightest bite.

Both saltwater and freshwater rods are used for casting, trolling, and jigging. You can find both baitcasting and spinning options in both rods. Saltwater rods are usually thicker and heavier in comparison to freshwater options. They are longer as well owing to longer casting. The only exception is the rod designed for tuna and marlin which are extremely powerful and short.

Also, the brakes, bearings, drag system, and gearbox are sealed off so that salt water cannot get to them. This is done for increasing the longevity of the components.

Our recommendation

The Gomexus Bass Fishing one-piece casting rod would make an ideal choice for beginners keen on venturing into saltwater fishing. Available in three length variants, this rod features increased strength and improved weight and sensitivity. Designed with premium Spiral X Graphite, these rods have heightened sensitivity. The design comes with a comfortable cork handle which allows you to maintain a strong grip on your rod.

Saltwater fishing tips for beginners

It can be quite daunting to fish offshore especially if you are a beginner. The sheer amount of fishing, boating, and rigging knowledge required to be successful can seem to be overwhelming at first. Here are some tips that can make your next offshore adventure a massive success.

Saltwater fishing setup tips

Choosing a saltwater rod and reel depends on whether you want to fish with metal jigs, trolls, or bait cast. You need to remember that

• Though longer rods help you cast farther, the shorter ones are more powerful when it comes to fighting a fish
• High-speed reels are ideal for fast baits whereas low-speed reels are more powerful while catching the fish
• The reel should be matched with the rod’s line weight
• For picking the right rod, match the lure weight with the size of the saltwater bait
• Do not forget to carry the saltwater fishing tools including the saltwater nets and gaffs, fishing knives, pliers and scissors, and the hook remover
• Don’t forget the bait as it influences the fish you want to catch

Rod maintenance tips for saltwater fishing

By following a few simple steps and with seasonal inspection, your fishing rods can provide you with years of service. When it comes to maintenance, the reels receive the most attention. This is because they have more working parts and all need to be functioning appropriately to assist you during fishing. Rods do not require much care.

• Wash the rod with fresh water from the tip to the end and wait for a few minutes to allow the salt to dissolve. Gently spray the water again and clean with a soapy wash mitt if the rods were exposed to heavy salt. Use warm water in the process if necessary
• Cork and EVA foam butts require a little more scrubbing for removing oils, dirt, blood, or fish slime. Rub the rag or wash mitt along the length of the rod with a dishwashing detergent and rinse with fresh water to make it look brand new
• It is a good idea to detach the reel and scrub the reel seat too
• Before each season, run a micro-fiber cloth or cotton ball through each ceramic ring guide. Any hairline crack with catch on the material indicating that you need to replace the guide

Summary

It is essential to be aware of the basics before buying any fishing rod for your freshwater fishing plans. Most carbon fiber, graphite, or fiberglass fishing rods are strong enough to catch a big fish with a light rod. If you know which rod to use when and how to maintain a fishing rod, you can extend the life of the fishing rod and keep the fishing line from breaking mid-fight and keep the rod’s performance at the optimal level. This guide offers all the essential information and tips you need as a beginner to enjoy trying your hand at saltwater fishing.

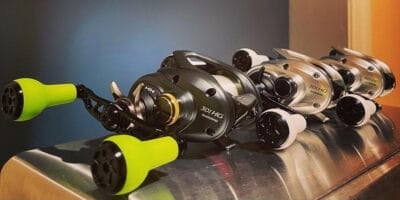

In this blog post, we are going to be looking at the method of installing a power knob on your reel. We’ll go over the steps in detail so that you can easily understand the process, and take care of it on your own.
But, before getting to the whole ‘how to’ stuff, we’re going to take a detour and look at what spinning reels and power knobs actually are. If you’re a rookie angler, you might find something new to learn.

What is a Power Knob?

The power knob is basically the grip that is attached to the reel handle. When an angler has to pull the game in, they grab the power knob to get a nice grip while reeling the line back on the spool.
Here, this is what a power knob looks like on a fishing reel:

See that round part with the golden inlays? That is the knob, which the angler grabs while winding the line after hooking a fish.
Power knobs are available in different shapes and sizes. In some reels, the reel handle has two knobs instead of one. These types of knobs are smaller, and they are easier to hold in a thumb-index finger grip.
On the other hand, some knobs (as shown in the image above) are bigger, and they are made to fit on reels with a one-ended reel handle.
The exact power knob that you should buy depends on the reel that you are looking to fit it on. For more information about selecting power knobs, you can check out this post.

What is a Spinning Reel?
A spinning reel is a type of reel that features a fixed spool on which the fishing line is wound and unwound using a rotating arm. The rotating arm can be engaged and disengaged by pressing a button on the reel.
When disengaged, the line flies off the spool at the casting motion of the angler. When engaged, the rotating arm winds the line back on the spool at the turning of the reel handle.
Another distinguishing feature of spinning reels is their open-face design, which allows anglers to see the spool and line clearly. These reels are installed on the bottom of the fishing rod and are generally considered to be great for beginners.
How to Install the Power Knob on the Spinning Reel – Step-by-Step Guide

Now that we know what spinning reels and power knobs are, let's move on to see how you can install a Gomexus power knob on a spinning reel. In this tutorial, we will be looking at the A20 power knob in particular. However, the installation is more or less the same regardless of which knob you’re using so you don’t have to worry if your model is a little different.
We'll divide the tutorial into two main steps i.e., the removal of the old knob and the installation of the new one.
Step Number 1: Remove the Original Power Knob
The first thing that you’ll need to do is remove the original knob from your spinning reel. The steps for doing that are as follows:
1.Pop out or unscrew the lid on the top of the knob. In some knobs, the cap will have screws and you will have to remove them before popping it out. In other models, you can simply wedge your nail in the gap or use a coin etc. to lever the cap out.

2.Unscrew the screw inside the knob with the help of a screwdriver. You will be able to see the screw inside easily. You can use a flashlight if it is not very visible. Depending on the knob you’re dealing with, the screw head could be a standard Philips, Torx or Polydrive.

Step Number 2: Install the Gomexus Power Knob
1.Once the screw has been safely stored and the original knob is off the shaft, you can go ahead and open your Gomexus power knob packaging. There will be different small washers and bearings in the package. So, be a little careful not to lose any one of them.

2.You will have to take the new power knob and remove the cap. This will be like you did with the original one in the first step. Depending on the knob you’re working with, you may need to unscrew it instead of just popping it up.

3.After removing the lid, take one of the bearings and slide it down the reel shaft.

4.After the first bearing, you will have to add two washers on top of it, followed by the second bearing.

5.Once the two bearings and washers are in place, you will have to put the knob right on top of them.

6.Then, after the knob is on the shaft, put a bearing through the screw (refer to step number three). Then, place them both in the hole at the top.

7.Tighten the screw and put the lid back on. If there is a waterproof ring included in the packet, you will have to put that around the lid itself. And that’s it!

Summary
Installing a power knob on a Gomexus spinning reel is fairly easy. As you can see in the tutorial above, the process only requires a couple of basic tools.
With the power knob, you also get an instruction manual that you can refer to if you find the installation process hard. The exact number and arrangement of bearings and washers can also be checked from there.
If you are using a Daiwa reel, the process will be a little bit different. You will have to use bushings instead of washers during the installation part.

Spinning reels are generally easier to use than baitcasting reels because they offer little resistance when pulling in your catch, making them ideal for anglers of all ages and experience levels alike. Plus, their compact size makes them the perfect choice for fishing in tight spots or on the go.

And no matter what type of fishing you enjoy, you’ll benefit from taking some time to learn about spinning reels before getting out on the water.

This article will teach you how to fish with a spinning reel. Lightweight, portable, and easy to use, this setup is great for beginners and experienced anglers alike.

How to Get the Most Out of Your Spinning Reel?

With most spinning reels, you will find that you constantly have to adjust your grip or find a comfortable way to hold your reel.

If this is the case, then the original handle on your reel was likely not designed with comfort in mind, and as a result, it's probably not the most comfortable option.

A new Gomexus handle can provide you with a more comfortable grip, which can help you fish for longer periods of time without experiencing discomfort.

Gomexus's customizable spin casting reel grips provide a variety of approaches that are suitable for a wide range of fishing circumstances. The majority of highly durable spinning reels can benefit from the power handle upgrade.

You can obtain handles having longer torques from Gomexus, which provides you greater power to cope with large fish for an extended period of time and saves you energy while you are drawing the bait.

Plus, If you wish to fish with more versatility, a reel handle made of a lightweight carbon material or with tiny knobs might be the perfect option for you.

Here are the best Gomexus power knobs and handles that will definitely improve your fishing experience.

1. Single spining handle

This Gomexus handle has a round knob to make for a more comfortable grip with a better mechanical function, making you effortlessly reel in your catch.

Spinning Reel Handle Aluminum LMY-A38 - $59.95

Buy Now

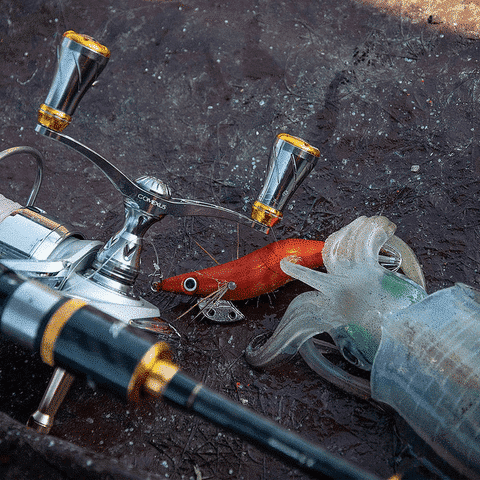

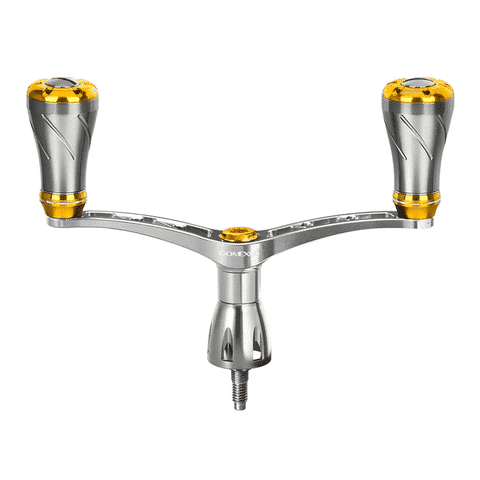

2. Double Spinning Handle

This handle keeps the strength at a high level while adopting a design with cutouts to reduce the weight.

Plus, it has design with a one-of-a-kind equilibrium that displays beauty, much like bird wings. This lets anglers have a greater degree of leverage and balance. This is all thanks to the double handle as opposed to the single or power handle.

Spinning Reel Handle Aluminum MDH-A20-$49.95

Buy Now

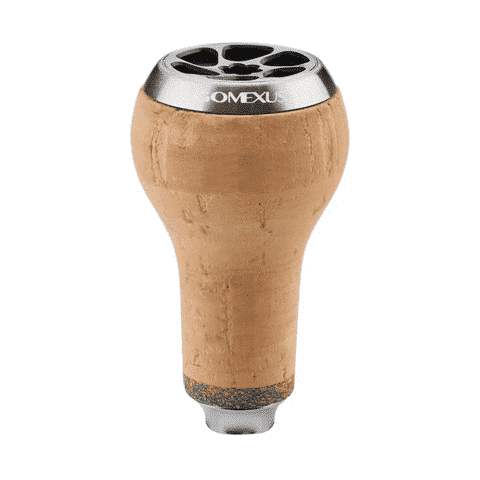

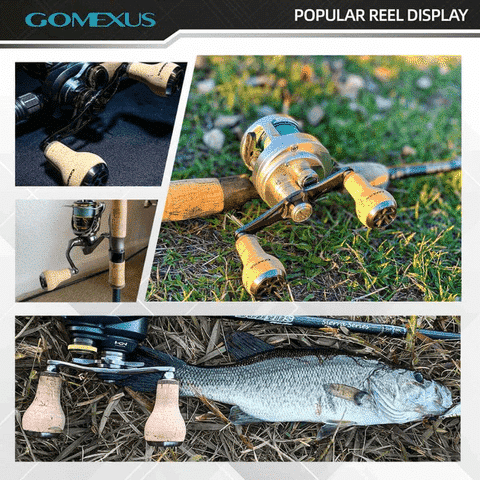

3. Cork Power knobs

When fishing for bass with a swimbait, the Gomexus cork power knob makes it easy to hold on to the rod. This lightweight cork handle knob provides great gripping capability in all kinds of weather situations, despite its natural low weight.

Gomexus Super Light Cork Konb-CA27-$19.95

Buy Now

How to Cast with a Spinning Reel?

Proper way to cast with a spinning reel:

• You should grab the rod so that the spinner is beneath the rod.
• The handle of the spinner should feel more natural among your fingers. The rod should be held at a position that is around waist level.
• Open the bail while maintaining a firm grip on the line, using your fingertip to create a loop in the line.
• Quickly move the rod tip forward and point it in the direction of your target.
• Do this after sweeping it over your dominant arm.
• Release the line with your finger when the rod starts to travel ahead of your shoulder.
• Do this so that the lure's weight may pull the line off the reel.
• You may use your hand to close the bail, and then you are ready to use a retrieve method with the reel.

The Types of Fish You Can Catch Using a Spinning Reel

The Bluegill

The bluegill is a species of fish that lives in freshwater environments, namely in ponds, lakes, and streams. It is a popular game fish because it is easy to catch and can be eaten. The bluegill has a dark body with vertical stripes. The best times to catch bluegill are in the spring and summer.

Sunfish

While being One of the most popular types of fish to catch using a spinning reel, the sunfish are also relatively easy to catch.

 This makes them a great choice for beginner anglers. Sunfish typically weigh between one and four pounds.

Crappie

They're easily recognizable by their unique black and white pattern. While they can be caught using a variety of methods, spinning reels are one of the most effective. To catch crappie using a spinning reel, try using live bait or small lures.

Largemouth bass are one of the most popular fish to catch, and for good reason. They're fun to catch and can put up a good fight. Plus, they're great to eat. If you're looking to catch a largemouth bass, you'll need to use a spinning reel.

Catfish

While Catfish are some of the most popular fish to catch, They're also big, they're fun to catch, and they put up a good fight. Plus, they're delicious.

The channel catfish and the flathead catfish are the two most common varieties of catfish. Channel catfish are delicious fish that are not difficult to reel in and make for an excellent meal.

The flathead catfish are not as spread out as channel. They also tend to be larger in size, and many people consider them to be the most flavorful kind of catfish.

Northern Pike

Pike are large fish that put up a fierce fight and are known for their strength. If you do manage to pull in one of them, it will take you far longer than it does to bring in the majority of the fish.

Conclusion

Whether you're just getting started in the world of fishing or you're looking to add a new type of reel to your collection, spinning reels are a great option. They're versatile and can be used to catch a variety of different fish. Plus, they're relatively easy to use once you get the hang of it. Visit our page for a broad selection of the best priced handles and buy now to start off your fishing comfortably.

There are so many reel handles at gomexus.com, but which one is suitable for your reel? Do you take a chance when making a decision? No, you don’t because we have a guide to help you choose the suitable reel handles for your reel.

Table of contents:
•    Part1. Types of Gomexus reel handles
•    Part2. How to choose the correct reel handles
•    Part3. How to replace the reel handles
•    Part4. Summary

Types of Gomexus reel handles

We classify our reel handles into 2 types, spinning reel handles and baitcasting reel handles.

This article will discuss how to choose the right baitcasting reel handles. If you have a spinning reel, please refer to the article on spinning reel handle guide.

How to choose the correct reel handles

The most straightforward way to choose your reel handle is to check the product fitment table to find the correct handles according to your reel model.

If you cannot find your reel model number in the product fitment table, or if you are not familiar with the reel information, please continue reading the guide.

For baitcasting reels, the shaft size is the key to make the correct and suitable choice for you. We have 3 dimensions for the shaft size, 7x4mm, 8x5mm and 6x6mm. Most manufacturers provide compatibility information, so double-check before purchasing to avoid any mishaps.

So, if your shaft size is 7x4mm, just go ahead and choose from the baitcasting reel handle with 7x4mm shaft size. It will fit perfect on your reel.

If your shaft size is 8x5mm, then please choose handles with an 8x5mm shaft.

How to know my Shaft Size

To measure the shaft size of your baitcasting reels, please follow the steps in the picture below:

Tips:

1. All Bass Pro Shops low profile baitcasting reels come with an 8x5mm shaft.
2. All Daiwa low profile baitcasting reels come with an 8x5mm shaft.
3. All Lew’s low profile baitcasting reels come with an 8x5mm shaft.
4. All Okuma low profile baitcasting reels come with an 8x5mm shaft.
5. All Quantum low profile baitcasting reels come with an 8x5mm shaft.
6. All 13 Fishing low profile baitcasting reels come with an 7x4mm shaft.
7. For Abu Garcia and Shimano baitcasting reels, please check the product fitment table.

If you are not sure about the shaft size, please contact us at [email protected], we are glad to help.

How to replace the reel handle

Different reel handles have different installation methods, so please refer to the product page or our installation video page to find the guide.

Here let's take BDH-A27 handle installation as an example:

Summary

The above is a standard guide on helping you to find the right baitcasting reel handles for your reels. If you still have questions now, please contact us at [email protected]. We are always here to help.

There are so many exciting reel handles at gomexus.com, but which one is suitable for your reel? Do you take a chance when making a decision?

No, you don’t, because we have prepared a guide to help you choose the suitable handles for your reels.

Table of contents:

• Part1. Types of Gomexus reel handle
• Part2. How to choose the right reel handles
• Part3. How to replace the reel handles
• Part4. Summary

Types of Gomexus reel handle

We classify our reel handles into 2 types, spinning reel handles and baitcasting reel handles. This article will discuss how to choose the right spinning reel handles.

If you have a baitcasting reel, please refer to this article on baitcasting reel handle guide.

How to choose the right reel handles

The most straightforward way to choose your reel handle is to check the fitment table, find the right handles according to your reel model. Click here to check Gomexus product fitment table.

Gomexus spinning reel handles are designed especially for Shimano and Daiwa brands.

We are in the  process of creating reel handles for other brands, such as Penn and more.

If you cannot find your spinning reel model number at the product fitment table, or if you are not familiar with the reel information, please contact us at [email protected], we are always here to help.

How to replace the reel handle

Different reel handles have different installation methods, so please refer to the product page or our installation video page to find the guide.

Take BDH-A27 as an example:

Summary

Spinning reel handles vary from brand to brand and from model to model, so actually there is no standard and detailed guide.

If you have questions with your spinning reel handle decision, please send us a livechat or contact us at [email protected]. We are always here to help.
